| Item Name | Sanitary Stainless Steel Tri-Clamp Ferrule |
| Standards | 3A / SMS |
| Sizes | 1/2" - 12" DN10 - DN300 |
| Material | SS304 / SS316L |
| Seal | Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type(s) | Weld End / Clamp End / Thread End |
| Operation Type(s) | × |
| Handles | × |
| Surface Finishing | Ra ≤ 0.8μm |
| Working Temperature | 70 °F ( ≈ 21 °C ) |
| Pressure Rating | Max. 200 psi |
| Application Scopes | Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical |
| Marking | Laser Marking |

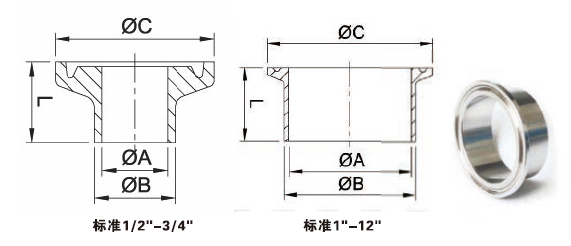

| SIZE | ØA (MM) | ØB (MM) | ØC (MM) | WMP L1 (MM) | MMP L2 (MM) | AMP L3 (MM) |
|---|---|---|---|---|---|---|
| 1/4" | 3.9 | 6.35 | 25 | 12.7 | 21.5 | 28.6 |
| 1/2" | 9.4 | 12.7 | 25 | 12.7 | 21.5 | 28.6 |
| DN15 | 9.7 | 12.7 | 25.4 | 12.7 | 21.5 | 28.6 |
| 3/4" | 15.75 | 19.05 | 25 | 12.7 | 21.5 | 28.6 |
| DN20 | 15.95 | 19.05 | 25.4 | 12.7 | 21.5 | 28.6 |
| 1" | 22.1 | 25.4 | 50.5 | 12.7 | 21.5 | 28.6 |
| DN25 | 22.5 | 25 | 50.5 | - | 21.5 | 28.6 |
| 1-1/4" | 28.45 | 31.75 | 50.5 | 12.7 | 21.5 | 28.6 |
| 1-1/2" | 34.8 | 38.1 | 50.5 | 12.7 | 21.5 | 28.6 |
| DN38 | 35.5 | 38.1 | 50.5 | - | 21.5 | 28.6 |
| 2" | 47.5 | 50.8 | 64 | 12.7 | 21.5 | 28.6 |
| DN51 | 48.5 | 51 | 64 | - | 21.5 | 28.6 |
| 2-1/2" | 60.2 | 63.5 | 77.5 | 12.7 | 21.5 | 28.6 |
| DN63 | 60.5 | 63.5 | 77.5 | - | 21.5 | 28.6 |
| DN76 | 72.9 | 76.1 | 91 | - | 21.5 | 28.6 |
| 3" | 72.9 | 76.2 | 91 | 12.7 | 21.5 | 28.6 |
| DN104 | 100 | 104 | 119 | - | 21.5 | 28.6 |
| 4" | 97.4 | 101.6 | 119 | 15.8 | 21.5 | 28.6 |
| 6" | 146.86 | 152.5 | 166.87 | - | 21.5 | 28.6 or 38.1 |
| 8" | 197.66 | 203.3 | 217.67 | - | 21.5 | 28.6 or 38.1 |
| 10" | 247.2 | 254 | 268.47 | - | 21.5 | 28.6 or 38.1 |
| 12" | 298 | 304.8 | 319.27 | - | 21.5 | 28.6 or 38.1 |
