Item Name Sanitary Stainless Steel Union - DIN 11851 Coupling
Standards DIN11851
Sizes DN10 - DN200
Material SS304 / SS316L
Seal Silicone / EPDM / Viton / NBR / PTFE
Connection Type(s) Weld End / Thread End / Blind End / Hose Connector
Operation Type(s) ×
Handles ×
Surface Finishing Ra ≤ 0.8μm
Working Temperature Up to 140°C
Pressure Rating DN10 – DN40 max. 40 bars @ 20°C
DN50 – DN100 max. 25 bars @ 20°C
DN125 – DN150 max. 16 bars @ 20°C
DN200 max. 10 bars
Application Scopes Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical
Marking Laser Marking

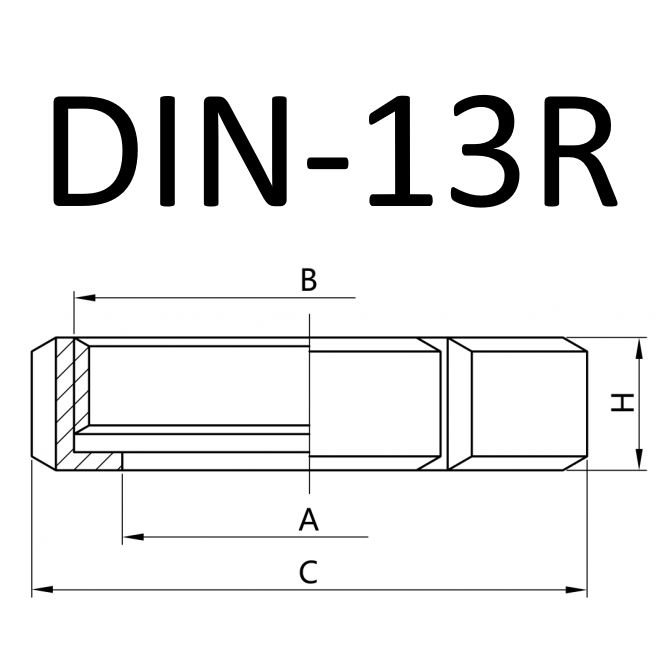

DIN-13R
DN		 ØA B ØC H SLOTS
10 19 RD 28×1/8 38 18 4
15 25 RD 34×1/8 44 18 4
20 31 RD 44×1/6 54 20 4
25 36 RD 52×1/6 63 21 4
32 42 RD 58×1/6 70 21 4
40 49 RD 65×1/6 78 21 4
50 62 RD 78×1/6 92 22 4
60 70 RD 85×1/6 99 22 4
65 80 RD 95×1/6 112 25 4 / 6
75 88 RD 104×1/6 119 25 4 / 6
80 94 RD 110×1/4 127 29 4 / 6
90 104 RD 120×1/4 138 30 4 / 6
100 115 RD 130×1/4 148 31 4 / 6
125 138 RD 160×1/4 178 35 4 / 6
150 164 RD 190×1/4 210 40 4 / 6
200 214 RD 240×1/4 260 39 4 / 6

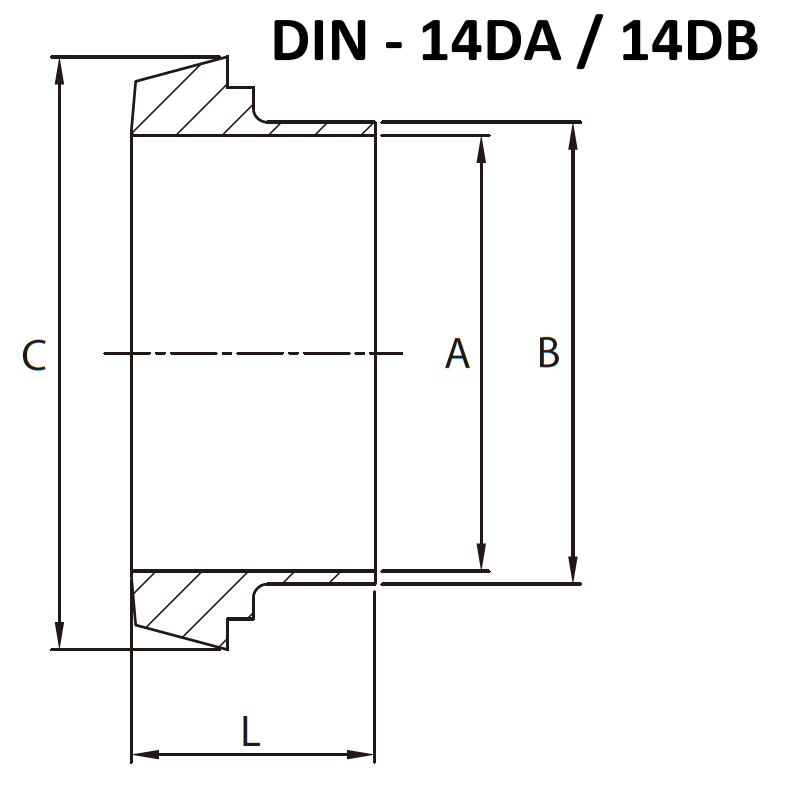

14DA / 14DB
DN		 DA
ØA		 DA
ØB		 DB
ØA		 DB
ØB		 ØC L
10 10 13 9 12 22.5 17
15 16 19 15 18 28.5 17
20 20 23 19 22 36.5 18
25 26 29 25 28 44 22
32 32 35 31 34 50 25
40 38 41 37 40 56 26
50 50 53 49 52 68.5 28
60 57 61 57 61 76 30
65 66 70 66 70 86 32
80 81 85 81 85 100 37
100 100 104 100 104 121 44
125 125 129 125 129 150 34
150 150 154 150 154 176 37
200 200 204 200 204 226 39

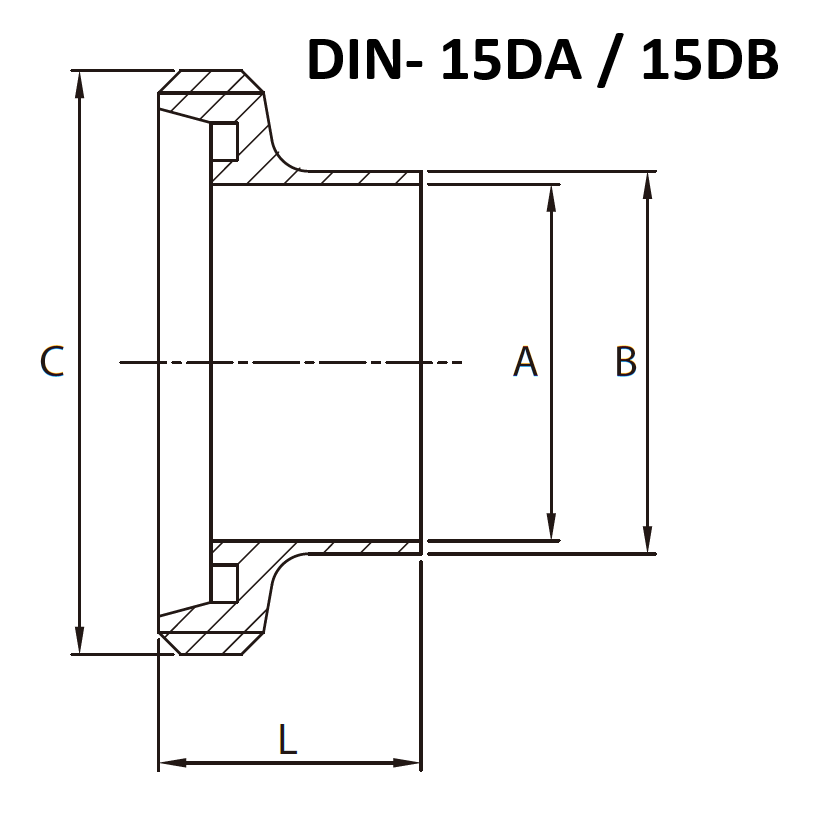

15DA / 15DB
DN		 DA
ØA		 DA
ØB		 DB
ØA		 DB
ØB		 C L
10 10 13 9 12 RD 28×1/8 21
15 16 19 15 18 RD 34×1/8 21
20 20 23 19 22 RD 44×1/6 24
25 26 29 25 28 RD 52×1/6 29
32 32 35 31 34 RD 58×1/6 32
40 38 41 37 40 RD 65×1/6 33
50 50 53 49 52 RD 78×1/6 35
60 57 61 57 61 RD 85×1/6 36
65 66 70 66 70 RD 95×1/6 40
80 81 85 81 85 RD 110×1/4 45
90 89 93 89 93 RD 120×1/4 54
100 100 104 100 104 RD 130×1/4 54
125 125 129 125 129 RD 160×1/4 46
150 150 154 150 154 RD 190×1/4 50
200 200 204 200 204 RD 240×1/4 50
