Our offered show Delivered Half Coupling to us is everything seen as recommended inside the total part. These Carbon Steel Connection Weld Coupling come in each enormous evaluation, and examinations to choose all issues of our regarded clients. We are a stockist of a whole level of Carbon Steel Connection Weld Coupling, Connection Weld Line Coupling in different sizes. We are the best Suppliers and exporter of Connection Weld Coupling Class 150 at the best cost as we are point of reality the best Supplierss and experts of Stainless Steel Connection Weld Half Coupling in India. Strong Connection Weld Half Coupling Manufacturers in India. Stockist of 3000 Lb Connection Weld Coupling to take a gander at evaluation and sizes with our arranged stock prepared to pass on you the standard cost of SW Coupling Class 150. Purchase a little while later Molded Line Coupling, Connection Weld Line Coupling, most extremely shrewd game plan, cost. Supplierss of Formed Half Coupling, 6000# Connection Weld Coupling and SS Fabricated Connection weld Coupling in Dubai, UAE.
ASME B16.11 association weld coupling could be a connector used to screw two pieces of line together. Spread out Steel Connection Weld Half Coupling is as it has toward one side and the furthest edge is welded or something else ensured going to the diverting. They notice different applications inside the flight business as connectors to compacted fuel organizing. These are other than magnificent in synchronization with public and all that thought regarding measures and nuances.
Socket Weld Half Coupling Manufacturers, Socket Weld Half Coupling Suppliers, Socket Weld Half Coupling Stockists, Socket Weld Half Coupling Exporters
Socket Weld Half Coupling Manufacturers in India, Socket Weld Half Coupling Suppliers in India, Socket Weld Half Coupling Stockists in India, Socket Weld Half Coupling Exporters in India
ASME B16.11 affiliation weld coupling could be a connector used to screw two pieces of line together. Established Steel Connection Weld Half Coupling is as it has toward one side and the furthest edge is welded or something else ensured going to the diverting. They find different applications inside the flight business as connectors to compacted fuel arranging. These are furthermore state of the art in synchronization with public and generally speaking measures and nuances.
Socket Weld Half Coupling Manufacturers in Mumbai, Socket Weld Half Coupling Suppliers in Mumbai, Socket Weld Half Coupling Stockists in Mumbai, Socket Weld Half Coupling Exporters in Mumbai
| Specifications | Forged Half Coupling |
|---|---|
| Dimension Specification | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Half Coupling Forged Fittings Thread | NPT, BSPT, BSPP |
| Half Coupling FittingsType | DN15-DN1200 |
| End | Threaded, Welding, JIC |
| Half Coupling Fittings Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs Half Coupling |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Half Coupling |
| Size Range | 1/8" NB TO 4" NB |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Half Coupling Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Key markets and industries for Half Coupling Fittings |
|
| Application |
|
| Carbon Steel Half Coupling |
|
| Stainless Steel Socket weld Half Coupling |
|
| Alloy Steel Half Coupling |
|
| Titanium Half Coupling |
|
| Inconel Half Coupling |
|
| Copper Half Coupling | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
| Copper Nickel Half Coupling | Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Brass Half Coupling | 3602 / 2604 / H59 / H62 / etc. |
| Hastelloy Half Coupling | Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X |
| Monel Half Coupling | Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Alloy 20 Half Coupling | Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Aluminium Half Coupling | 5052 /6061/ 6063 / 2017 / 7075 / etc. |
| Nickel Half Coupling | Nickel 200, Nickel 201 |
| Duplex Half Coupling | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Super Duplex Half Coupling | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Incoloy Half Coupling | Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825) |
| 254 Smo Half Coupling | SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Nimonic Half Coupling | Nimonic 75, Nimonic 80A, Nimonic 90 |
| Other Half Coupling material | Tin bronze, Alumunum bronze, Lead bronze |

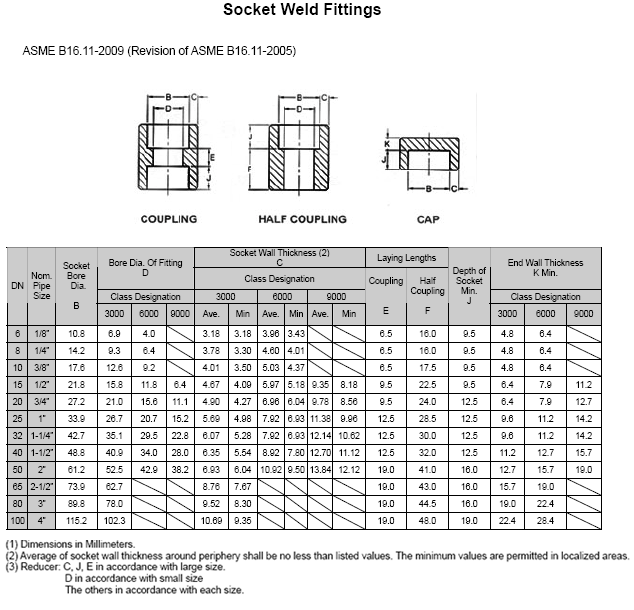

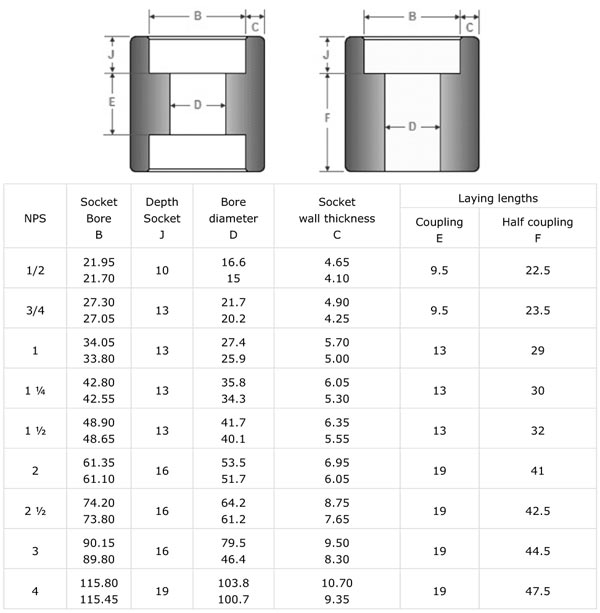

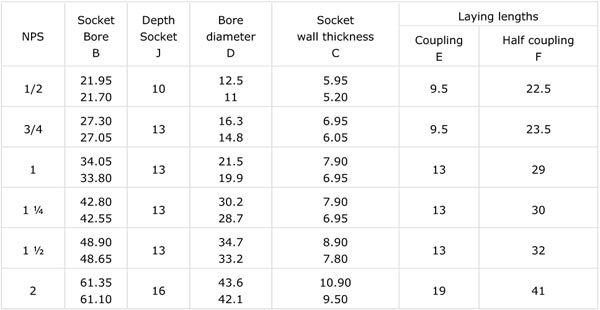

DIMENSIONS SOCKET WELD COUPLINGS AND HALF-COUPLINGS 6000 LBS-NPS 1/2 – 2 ACCORDING TO ASME B16.11
General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) – Maximum and Minimum dimensions.
Bore Diameter (D) – Maximum and Minimum dimensions.
Socket wall thickness – (C) – Average of Socket wall thickness.
Dimensional tolerances laying lengths – (E & F)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2½ to NPS 4 = +/- 2.5 mm

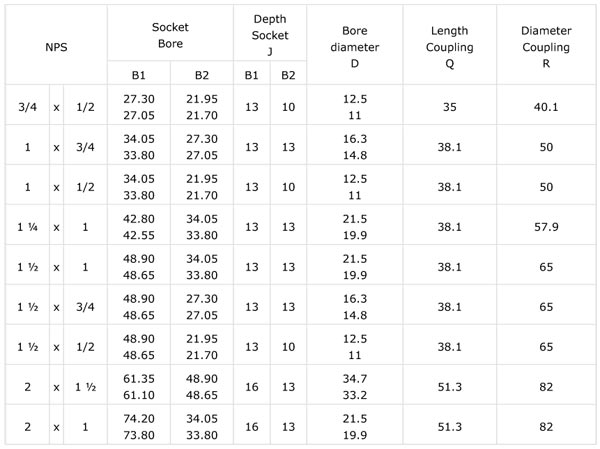

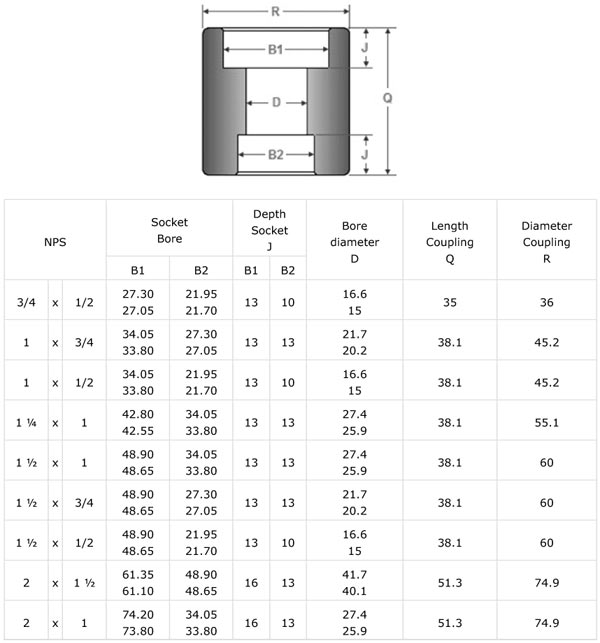

DIMENSIONS SOCKET WELD REDUCING COUPLINGS – 3000 LBS – NPS 1/2 – 2 ACCORDING TO ASME B16.11
General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B1 / B2) – Maximum and Minimum dimensions.
Bore Diameter (D) – Maximum and Minimum dimensions.
DIMENSIONS SOCKET WELD REDUCING COUPLINGS – 6000 LBS – NPS 1/2 – 2 ACCORDING TO ASME B16.11
